A future proof powerhouse that works for Light or Heavy Duty vehicles and Equipment!
A full-featured future proof powerhouse built to support a wide range of vehicle protocols including OBD/JBUS vehicle diagnostic interfaces for light to heavy-duty vehicles and up to 24 volt systems. The strength of this All-in-One tracking device is in its ability for rapid customization by application requirements with a modular design. This cellular-based device has 2 x 1-Wire Bus interfaces for options such as Driver ID or serial temperature sensing, plus 5 x Digital and 1 x Analog inputs (PTO, Beacon Lights, or other key vehicle statuses).
AutoConnect GPS is a connected device that requires a separately billed monthly wireless Service Plan ($23.95/month/device) to communicate over the cellular network. A one-time $20 network activation fee is not included in the unit price. All cellular data is included in the price of the monthly service plan from AutoConnect GPS.
Monitoring and Alert Highlights
Live Location / At a glance see where your entire fleet is located on Google Maps (Desktop and Mobile App)!
Real-time Alerts / Get text or email notifications for just about any tracked fleet activity and device tampering!
Driver Behavior / Track speed, acceleration, braking, RPM, and idling and start reducing wasteful driving!
Vehicle Health / Schedule and manage the health of your fleet pro-actively plus monitor vehicle engine diagnostic trouble codes!
Geofence Landmarks / Create virtual perimeters around any area on the map and record associated activity!
Reporting & Analytics / Gain insight and make better decisions with extensive fleet performance reporting and analytics!
This full-featured device is versatile and built to support a wide range of vehicle protocols including passenger, light to heavy-duty trucks, and industrial equipment. Its strength is in its ability for rapid customization by application requirements with a modular design.
Compatible with 12 and 24 volt systems and surge protection built-in. The two 1-Wire Bus interfaces allow for Driver ID or Serial Temperature Sensing. The highly configurable device provides control of reporting behavior to support evolving business needs. The device is equipped with a built-in backup battery, disconnect alert and ultra-low current draw to protect vehicle batteries from draining unnecessarily. An audible driver coaching alert feature automatically warns drivers when driving policies, such as travel speeds or excessive idling, are about to be breached.
- OBDII / JBUS Diagnostic Connection (optional)
- Integrated GPS Antenna
- Quad-Band Cellular Antenna
- Up to 24 Volt Operation
- Backup Battery w/Disconnect Alert
- Data Authentication Intelligence ‘Ack-Back’
- Over-Speed Warning Beeper
- Motion Sensor
- Over-Speed (default 120 km/h)
- Low Battery
- Ignition On/Off
- Possible Towing
- Service Schedules
- Excessive Idling
- Landmark Entrances/Exits
- Excessive Acceleration/Hard Braking
- All Cellular Data (no overages)
- Unlimited Admin Users
- Scheduled Reports
- Driver Scorecards
- 12-months Trip History Retention
- Groups (Custom Fleet Hierarchy)
- API Access
- Customer Support
NOTE: If you require professional installation assistance, please contact us: 1.855.287.4477
Download this Document
1) Determine Installation Options
Depending upon the requirements, the device can be installed with the following options.
- Type 1 – Device Only
- Type 2 – PNT2001OBDHD with Starter Kill/input/output
- Type 3 – PNT2001OBDHD with DRIVER ID
- Type 4 – PNT2001OBDHD with Driver ID & PERF
2) Complete the wire connections according to the required options
Red : 12-24 Volts (+) Constant
White : Ignition (+) (MUST be a true ignition source)
Black : 12-24 Volts (+) Constant
Green : Ignition (+) (MUST be a true ignition source)
Purple : 12-24 Volts (+) Constant
Grey : Ignition (+) (MUST be a true ignition source)
Yellow/Black : 12-24 Volts (+) Constant
Yellow/Orange : Ignition (+) (MUST be a true ignition source)
Yellow/Green : 12-24 Volts (+) Constant
Yellow/Red : Ignition (+) (MUST be a true ignition source)
Green/Blue : 12-24 Volts (+) Constant
Grey/Black : Ignition (+) (MUST be a true ignition source)
– GROUND MUST BE CONNECTED DIRECTLY TO CHASSIS WITH PAINT REMOVED –
3) Position the device in an Optimal Location
Failure to adhere to these suggestions will result in a weak cellular and/or GPS signal and will affect the performance of the device.
- Secure in upper portion of dash in a hidden location with correct side pointing skyward (label will indicate proper orientation). Example: Above instrument cluster.
- Do not cover with metal or position near any source of interference (Vehicle Radio, BCM). Keep a safe distance of at least 24”.
4) Connect OBD/JBUS (Optional)
Refer to the PNT2001OBDHD/JBUS Connections on the following page.
5) Confirm LED Status
Orange :Flashing Connected/Online
Green :1Flash/Sec Valid GPS
IMPORTANT: MUST BE TESTED
Please call 1.855.287.4477 to test GPS device before closing up the dash.
Failure to follow these instructions may damage equipment and void its warranty.

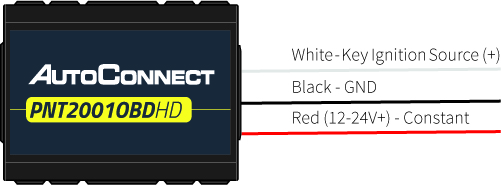

Type 1: PNT2001 OBDHD

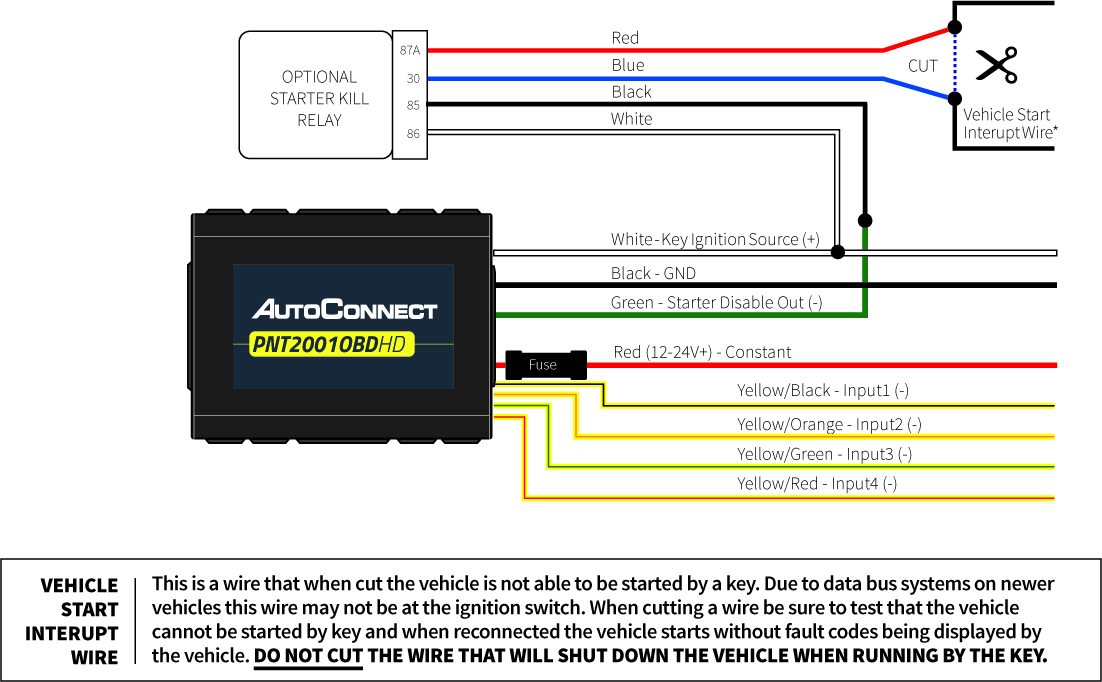

Type 2: PNT2001OBDHD with Starter kill/Inputs/Outputs (optional)

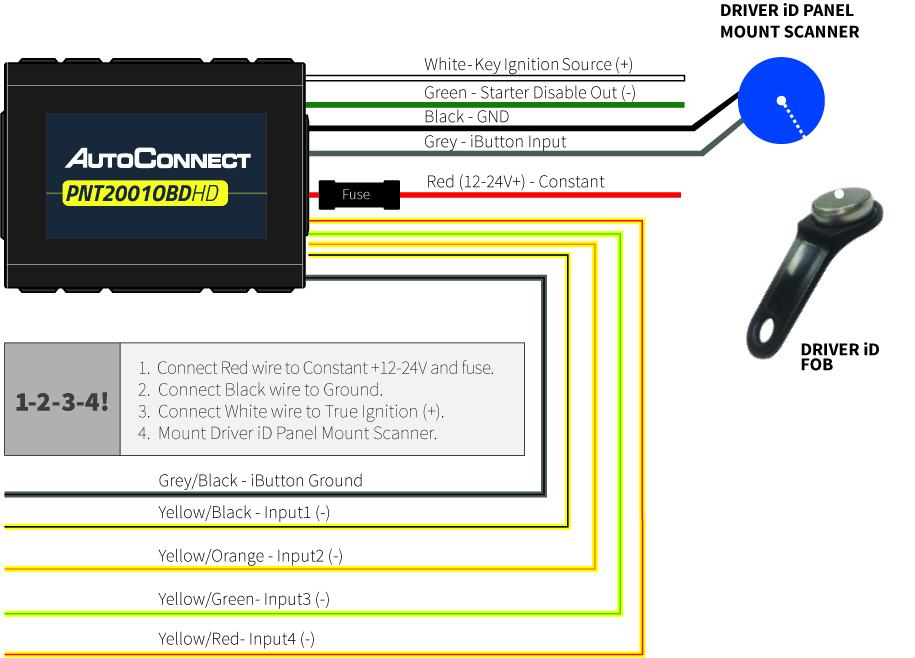

Type 3 : PNT2001OBDHD with Driver ID (optional)

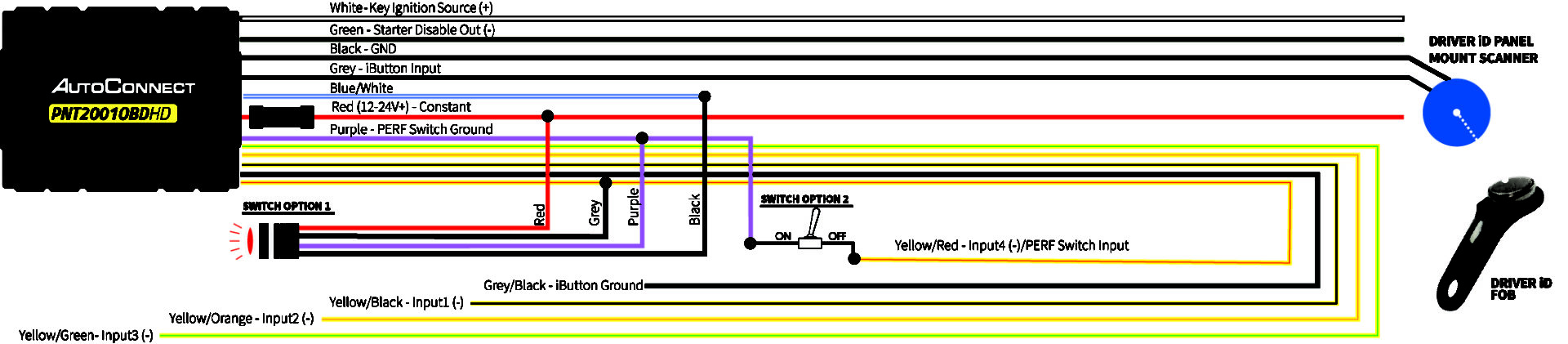

Type 4 : PNT2001OBDHD with Driver ID and PERF(optional)

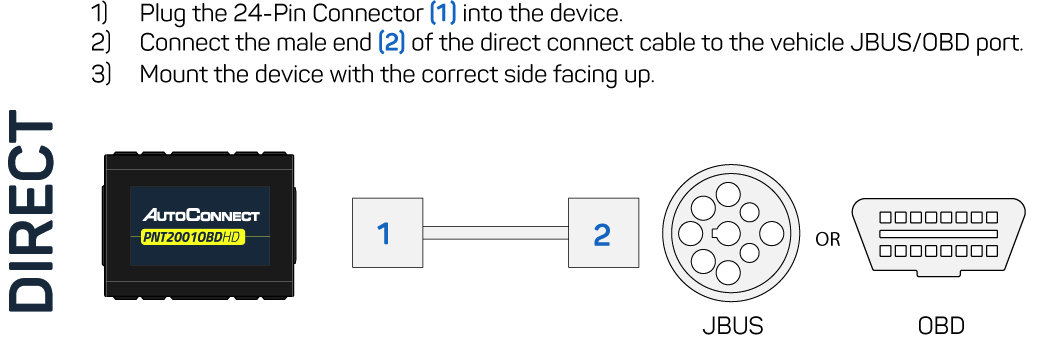

Direct OBD/JBUS Installation (optional diagnostic connector required)

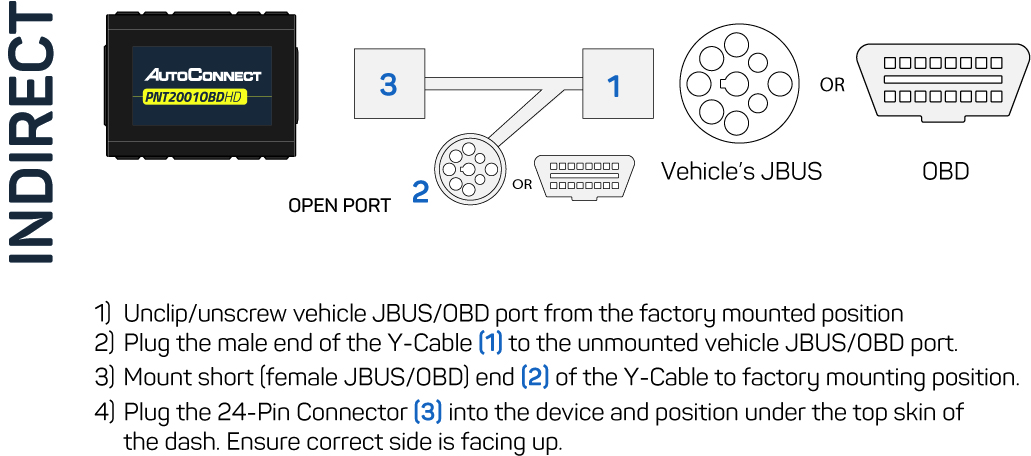

Indirect OBD/JBUS Installation (optional y-cable diagnostic connector required)
Do not connect the red constant wire if connecting with a 24 pin harness to the PNT2000OBDHD device
Failure to follow these instructions may damage equipment and void its warranty.
The manufacturer warrants to the original purchaser of the AutoConnect GPS product, that the product shall be free from defects in material and workmanship. However, should this product be proven to be defective, within a one year period from the original date of purchase, the manufacturer will, without charge to the purchaser (excluding any charges incurred to have the product delivered to the manufacturer), repair or replace any part of the AutoConnect GPS product which the manufacturer agrees to be defective.
All warranties apply to the original purchaser ONLY. Repairs or replacement of defective items shall remain at the discretion of the manufacturer. All other parts, components, accessories, and/or optional equipment pertaining to the messaging system are not included in the manufacturer’s warranty. This warranty is non-transferable. Request for warranty service from any Factory Authorized Dealer must be accompanied with the original purchase receipt. Failure to comply with any of these conditions may result in the warranty being void and/or refused. This warranty does not cover the following: removal and reinstall labor charges, shipping charges, abuse, misuse, or accidental damages to the automobile, and/or parts thereof. This warranty is void upon modification, repairs, or alterations to any part of the product. The manufacturer does not guarantee or insure against theft of the vehicle or its contents. The manufacturer shall not be held liable for any consequential damages due to a breach of this or any other warranty, expressed or implied. This warranty gives you specific legal rights. Your specific legal rights may vary for each region.
CERTAIN DAMAGES EXCLUDED – The manufacturer expressly disclaims any liability or responsibility for incidental damages caused by the product, including economic loss, loss of use of the product, car rentals, or any other costs relating to the care and custody of the product. The manufacturer disclaims liability or responsibility for any consequential damages caused by the product or resulting from its use, including the cost of repairing or replacing other property damaged by the product or caused by its use, whether or not the product is working properly. The product is intended to deter unauthorized use of the vehicles in which it is installed. The manufacturer does not warrant that the product is fool-proof against theft and/or vandalism and/or human error or misuse. The manufacturer accepts no liability or responsibility for any damage of any kind whatsoever caused to any vehicle in which the product is installed or any resulting damage from its use. The manufacturer accepts no responsibility or liability for any damage resulting to or theft of the vehicle or its contents caused or alleged to be caused, directly or indirectly, by a failure of the product.
“The Modem” in this device complies with Part 15 of the FCC rules. The operation of this device is subject to the following conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
- CAUTION: Changes or modifications not expressly approved by the party responsible for compliance void the user’s authority to operate this device.
